Linea Square Chrome Thermostatic Shower Set

Linea Square Chrome Thermostatic Shower Set

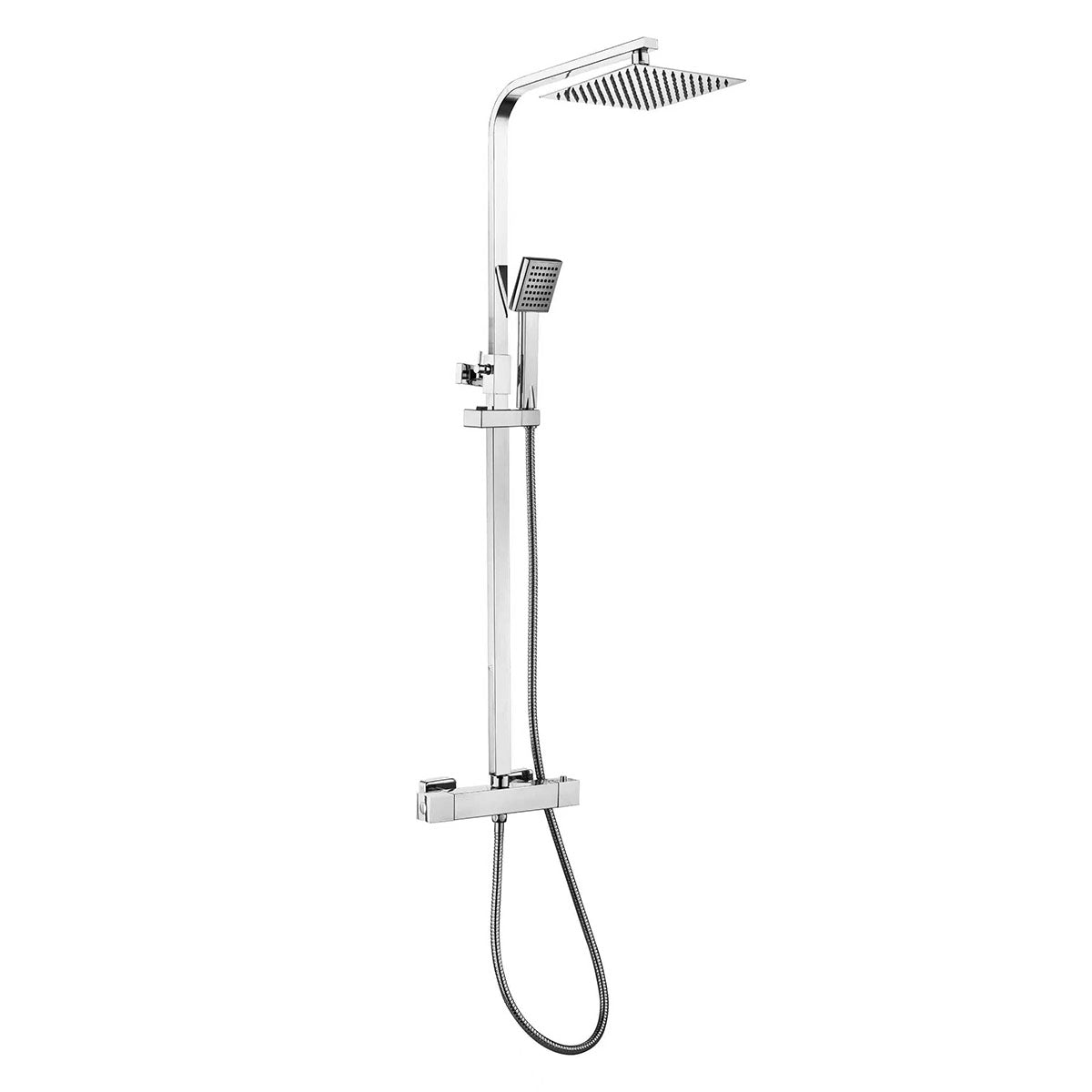

The Linea Square Chrome Thermostatic Shower Set is a wall-mounted exposed shower set with a thermostatic bar valve, finished in a bright chrome finish and sharp, square lines. The set combines a 195mm square fixed shower head with a handset on a slide rail, so you can choose between an overhead shower and a more directed spray. The valve has separate controls for flow and temperature, letting you set each one precisely, and a diverter cartridge switches between the two outlets. The chrome finish matches the most common bathroom brassware, so it is easy to coordinate with taps and accessories.

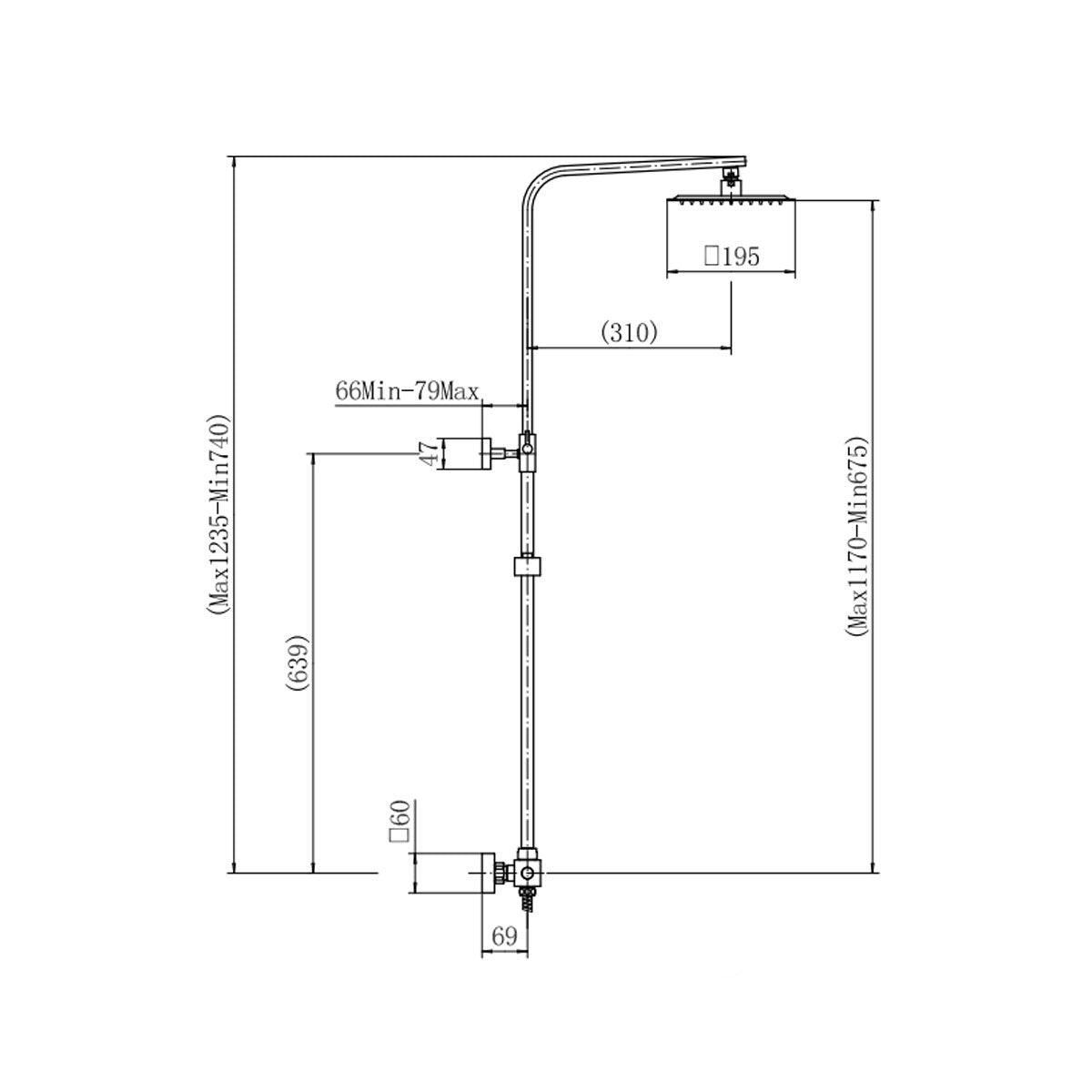

A thermostatic cartridge holds the outlet temperature to within 2°C for a stable shower, with automatic shut-off if the cold water supply fails to help prevent scalding, and the temperature is factory set to 38°C. The valve works across 1 to 5 bar, with the best performance at 3 bar, and delivers 12.3 litres per minute at 3 bar. The set has DN15 inlet connections on 150mm centres and a G 1/2 inch outlet, and the overall height adjusts from 740mm to 1235mm, with the 195mm square fixed head held out on a 310mm arm. It is WRAS approved and supplied with installation instructions and fixings. Chrome finish products carry a 5 year guarantee when the online registration form is completed within 30 days of installation.

Signature Features

• Thermostatic bar valve with separate flow and temperature control
• Diverter cartridge to switch between head and handset
• 195mm square fixed shower head on a 310mm arm
• Handset on a slide rail for adjustable use
• Temperature held to within 2°C and factory set to 38°C
• Automatic shut-off if the cold water supply fails
• Stainless steel body, riser, head and hose
• Overall height adjustable from 740mm to 1235mm
• WRAS approved, working range 1 to 5 bar
