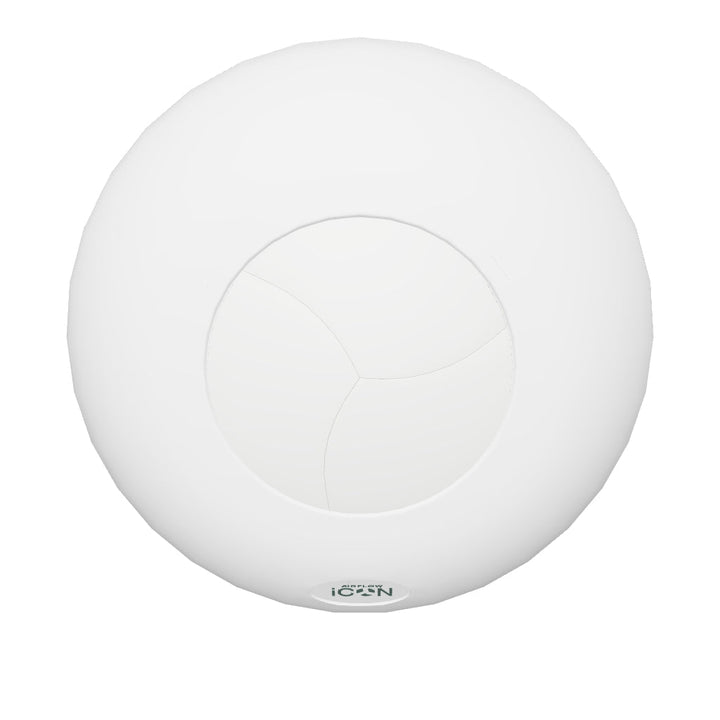

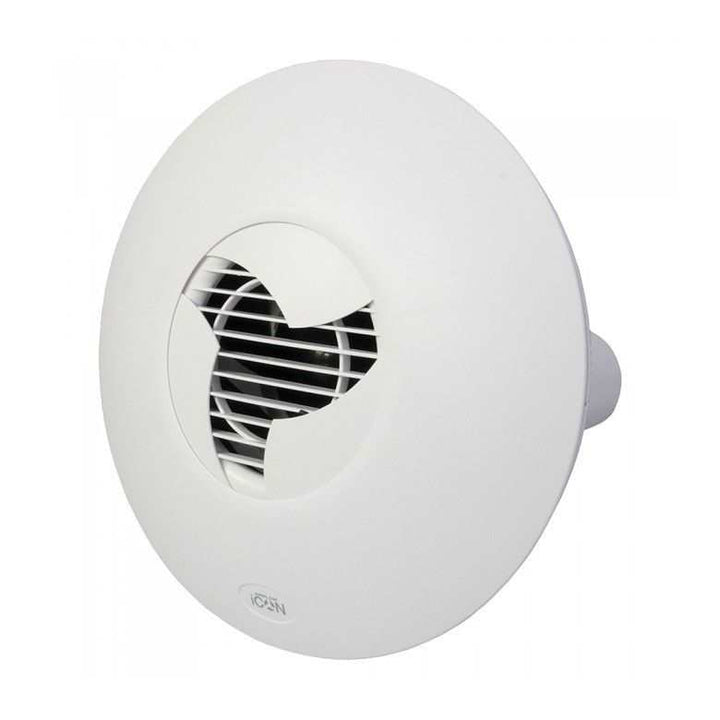

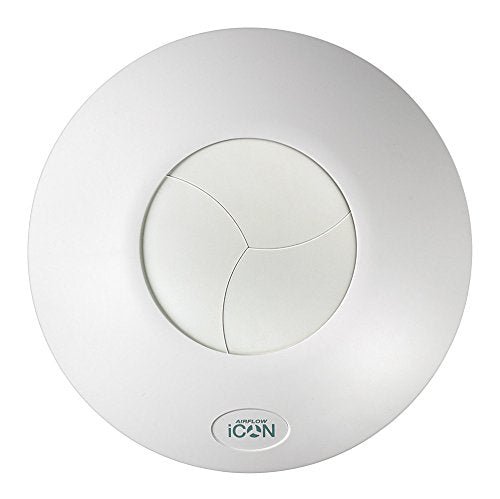

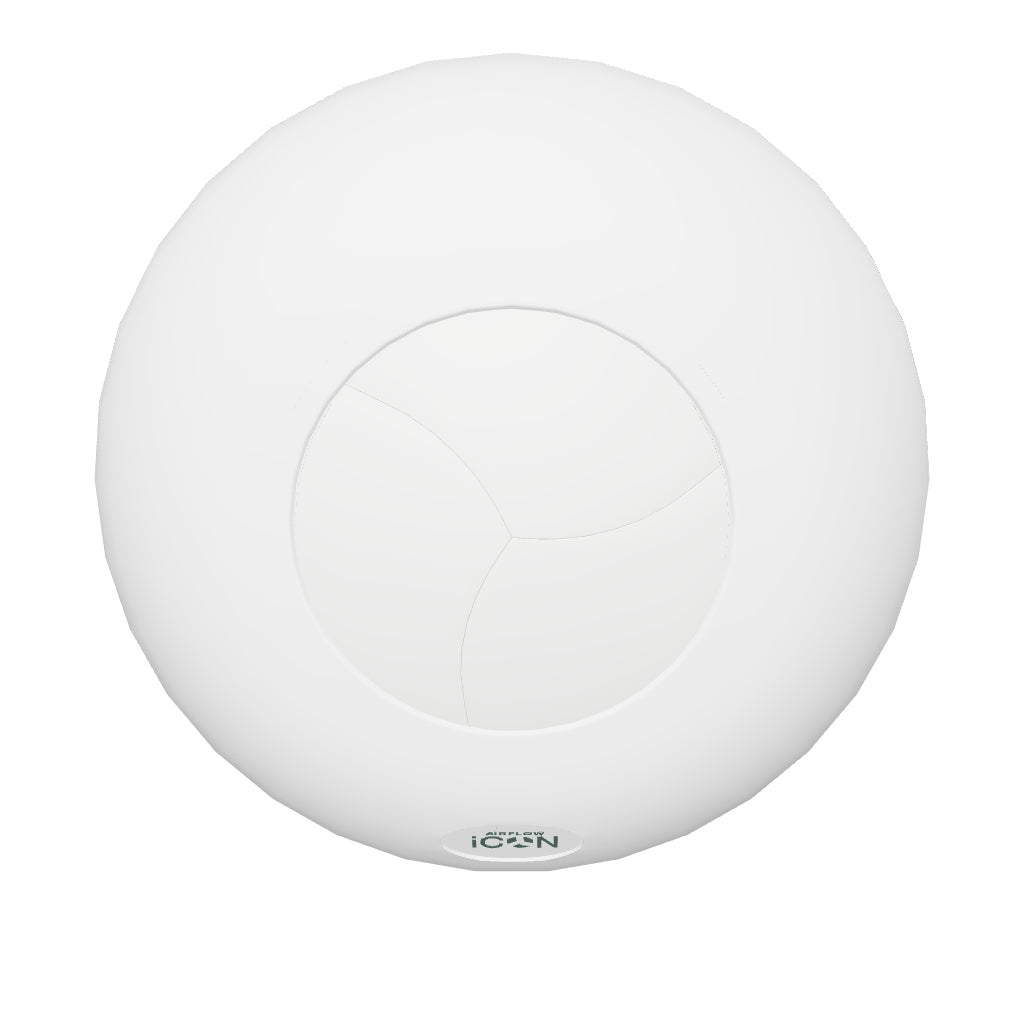

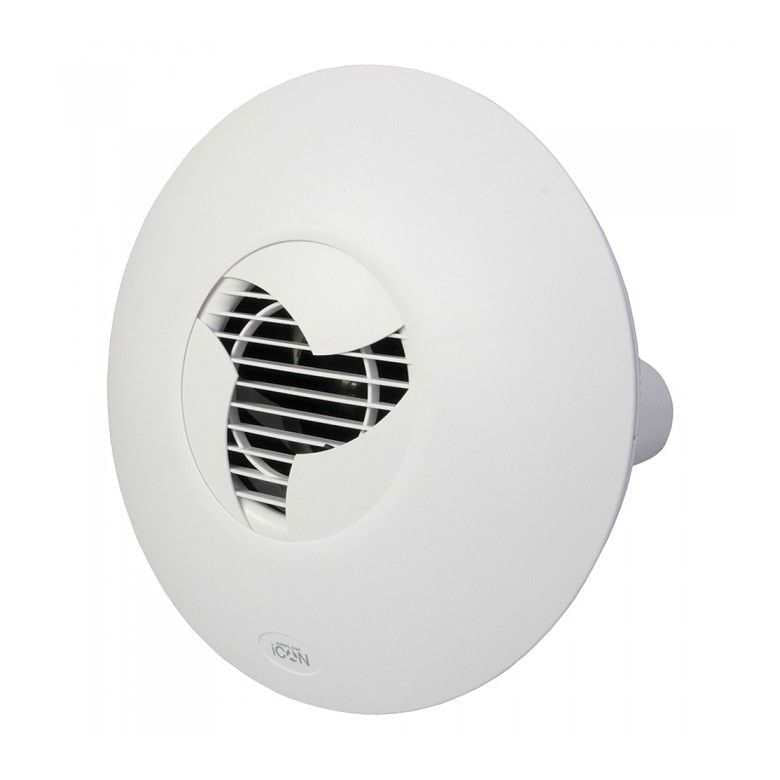

Airflow iCON 15 Extractor Fan Mains 100mm with Auto-Iris

Airflow iCON 15 Extractor Fan Mains 100mm with Auto-Iris

Colour:The standard fan comes with a white cover, but you can choose from a range of colours in order to compliment your room decor

Auto-iris:The smooth opening front shutter design has been a massive winner for Airflow. Its futuristic and sleek, our clients love it. It effectively stops drafts from getting back into your room

Easy Installation- A quick, core drilled hole enables immediate fixing of the fan. The twist on/off cover requires only a single side entry fixing screw. Cantilever fixing lugs enable recessed installation on uneven surfaces

Modules: Various timer, humidity, sensor, dmev and delay start control options can be added by purchasing an additional module that plugs into your iCON15. Alternatively the fan will work on its own, as it comes, without a module in a straight on/off operation method (using any remote switch or lighting circuit). The iCON15 fan only takes mains voltage (230V) modules

Airflow iCON 15 Optional Control Modules:

Humidity (HTM)- Monitors the humidity in your bathroom and switches the fan on and off as required to control it. Also incorporates an overrun timer which allows the fan to run on for a while after the room light is switched off. The module also comes with a pull cord to allow local manual switching of the fan for the duration of the timer setting. Both the humidity level and the timer can be easily adjusted to suit your needs

Timer (TM)- An overrun timer which allows the fan to run on for a while after the room light is switched off

Pullcord (PCM)- Allows local manual switching of the fan

PIR/Timer (PRTM)- Switches the fan on when someone walks into the room. When they leave the room, the fan runs on for the duration of the timer setting. The module also comes with a pullcord to allow local manual switching of the fan for the duration of the timer setting

PIR/Humidity/Timer (PRHTM)- Same as the PRTM module but with additional humidity control (As you could easily leave the room when its full of steam)

Continuous Ventilation 2 Speed (CV2)- Allows the fan to run continuously at a low speed with the option to boost to high speed when the room is in use

Delay Start (DTM)- Delays fan start by 2 minutes and includes an over-run timer

• Can be ducted up to 4 metres (bends and accessories reduce this length)
• Can be Wall, ceiling or panel mounted
• Performance 21 litres per second which is 76 metres cubed per hour
• Overall Fan size 197x40mm
• Required Ducting Size 100mm
• Works Straight Off The Mains Supply 230V
• IPX4 Splashproof For Use In Bathrooms (subject to bathroom wiring regulations)
• Nice and quiet - sound pressure only 35dB(A) at 3M
