Specification Sheet

Round Triple Thermostatic Concealed Mixer Shower Kit
with Wall Mounted 200mm Shower Head, Slide Rail Kit
& Overflow Filler (12472)
BrandEliseo Ricci
Valve TypeConcealed
Shower TypeRain Head Showers
ColourChrome
Outlet ConnectionG 1/2"
Max Pressure4.0 bar
Min Pressure0.2 bar
Water Entry InletFlexi-Pipe
MaterialBrass
Product Attributes

Technical Drawing

Round Triple Thermostatic Concealed Mixer Shower Kit
with Wall Mounted 200mm Shower Head, Slide Rail Kit
& Overflow Filler (12472)

Specification Sheet

Triple Thermostatic Round Handle Concealed Valve
with Diverter (6539)
Length123.5mm
Width120mm
Height280mm
BrandScudo
ColourChrome
Shower Valve TypeConcealed
Function3 Outlets
Valve ShapeRound
Valve StyleModern
Outlet ConnectionG 1/2"
Max Pressure4.0 bar
Min Pressure0.2 bar
MaterialBrass
Product Attributes

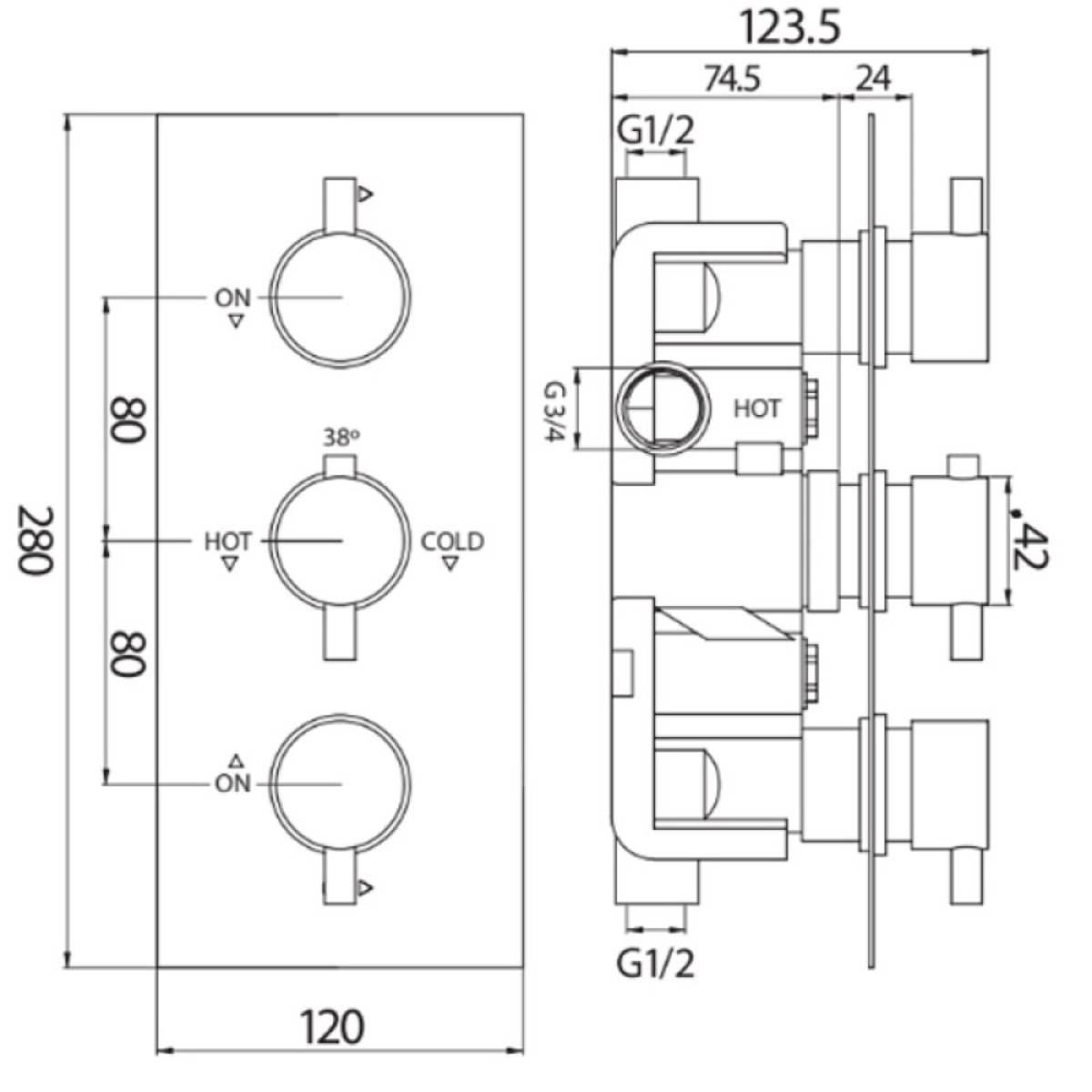

Technical Drawing

Triple Thermostatic Round Handle Concealed Valve
with Diverter (6539)

Specification Sheet

Stainless Steel Round 200mm Fixed Shower Head (6543)
BrandEliseo Ricci
ColourChrome
MaterialStainless Steel
Product Attributes

Specification Sheet

Round Wall Mounted Arm (6545)
BrandScudo
ColourChrome
MaterialBrass
Product Attributes

Specification Sheet

Eliseo Ricci Round Slide Rail Kit with
Multi-Function Handset (6541)
BrandEliseo Ricci
ColourChrome
MaterialBrass
Product Attributes

Technical Drawing

Eliseo Ricci Round Slide Rail Kit with
Multi-Function Handset (6541)

Specification Sheet

Round Shower Wall Outlet Elbow (6549)
BrandEliseo Ricci
ColourChrome
MaterialBrass
Product Attributes

Specification Sheet

Chrome Plated Brass Bath Filler and Overflow (13346)
BrandEliseo Ricci
ColourChrome
MaterialBrass
Product Attributes

Technical Drawing

Chrome Plated Brass Bath Filler and Overflow (13346)
